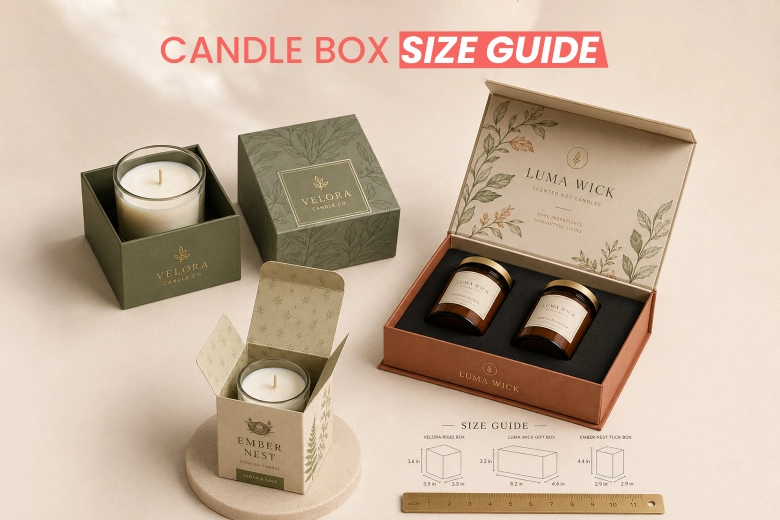

Candle Box Size Guide: Matching Box Dimensions to Jar Sizes

Candles are delicate and sensitive. Those that come in glass jars can break easily. This is why you need a snug-fit box to protect and preserve your candles’ quality.

But finding the perfect candle box can feel like a guessing game. If the box is too small, your jar won’t fit. If it is too big, the glass can rattle and break during transit. Getting the dimensions right is the secret to professional presentation and safe shipping.

Well, worry not; this candle box size guide will show you exactly how to match your jars to the perfect box every single time.

How to Measure a Candle Box?

To get the right dimensions for your candle box, first measure your candle. You cannot rely on the fluid-ounce (oz) label on your candle jar to choose a box. Fluid ounces measure volume, not physical dimensions. A wide 8 oz jar candle needs a completely different box than a tall 8 oz jar.

To prevent returns and broken glass, you must measure the physical candle container itself. So, grab a metal ruler or a digital caliper and follow these steps.

Measure Your Candle by Length, Width, and Height

The golden standard formula measures its length, width, and height.

• Length & Width: Measure the diameter of the thickest part of the base.
• Height: Measure from the absolute bottom to the tip of the wick.
• For multi-packs, lay your candles flat, side by side, to measure the total width.

But wait, different candle types come in different measurements, right?

Here’s how to measure your candle by its type.

Taper Candles

• Length & Width: Measure straight across the circular base to find the diameter.
• Height: Measure from the flat base to the top edge of the wax.
• Do not include the flexible wick in your height measurement.

Pillar Candles

• Length & Width: Votives often flare out at the top. Always measure the widest top diameter.
• Height: Measure vertically from the base to the top rim.

Votive Candles

• Length & Width: Votives often flare out at the top. Always measure the widest top diameter.
• Height: Measure vertically from the base to the top rim.

Tealight Candles

• Length & Width: Measure across the metal or plastic cup container.
• Height: Measure the shallow depth from the bottom to the top rim.

Jar Candles

• Length & Width: Measure the widest part of the glass jar.
• Height: Place the lid on the jar. Measure from the table up to the top of the lid.

Floating Candles

• Length & Width: Measure across the widest point of the rounded wax disc.
• Height: Measure your candle’s thickness from top to bottom.

Add Extra Space

Never buy a box with the exact same dimensions as your candle. You need to add a tiny clearance/buffer called “wiggle room.”

• Add 0.125 inches (3 mm) to your measurements if your candle is placed without the double-boxing method.
• Add 0.25 inches (6 mm) if you plan to wrap the candle in tissue paper or use a cardboard insert.

Overall, this extra space ensures your candle slides in smoothly without tearing the paper.

Standard Candle Box Sizes

Standard candle box sizes (Length × Width × Height) are generally categorized by candle type. The most common size is the 3.5 × 3.5 × 4.5-inch box, which perfectly fits standard 8-oz jar candles.

But not all candles are created equal. Thus, different candle types have different measurements to note.

Let’s break it down.

Taper Candle Boxes

• Standard: 1.25″ x 1.25″ x 10.5″ (for singles)
• Multi-packs: 4.5″ x 1.25″ x 10.5″ (for standard 4-packs)

Pillar Candle Boxes

• Standard: 3.25″ x 3.25″ x 4.25″ (for a 3” x 4” pillar)
• Large: 3.25″ x 3.25″ x 6.25″ (for a 3” x 6” pillar)

Votive Candle Boxes

• Standard: 2.25″ x 2.25″ x 2.75″ (ideal for standard 2 oz votive glass cups)

Tealight Candle Boxes

• Standard: 4.25″ x 4.25″ x 1.75″ (typically holds a retail grid pack of 6 to 12 tealights)

Jar Candle Boxes

• Small (4 oz jar): 2.5″ x 2.5″ x 2.75″
• Medium (8 oz / 9 oz jar): 3.25″ x 3.25″ x 3.75″
• Large (12 oz / 16 oz jar): 4″ x 4″ x 5.25″

Floating Candle Boxes

• Standard: 3.25″ x 3.25″ x 1.5″ (usually packed in flat, shallow boxes with clear window cutouts)

Candle Box Dimensions

Different Dimensions for Different Candle Box Styles

When it comes to making good candle packaging, the box style changes how you calculate sizes and dimensions. Different openings require different clearance levels.

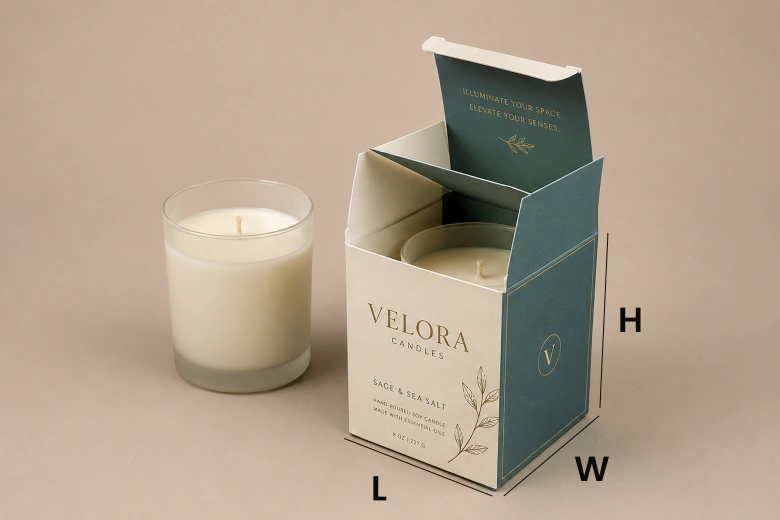

Tuck-End Boxes

These are standard, classic retail boxes with top and bottom flaps. Tuck top candle boxes are highly cost-effective and space-saving. You will need a minimum clearance of 0.125 inches for this style because your candle slides straight down from the top.

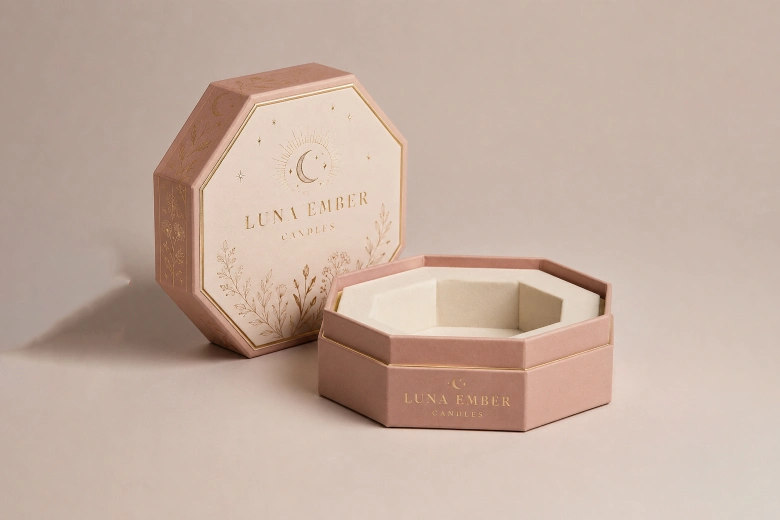

Two Piece Boxes

Two piece candle boxes feature a separate base tray and a lifting lid. It offers a very premium look. Because the lid slides over the base, ensure the outer lid dimensions account for the thickness of the candle box material beneath.

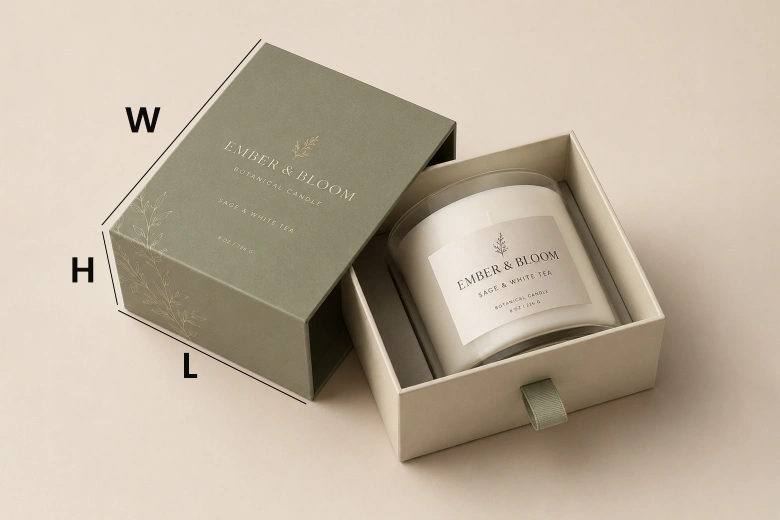

Drawer Boxes

Drawer candle boxes pull out using a ribbon tab. They require highly precise sizing. If the box is a fraction too tight, the drawer will jam. On the other hand, if it is too loose, your heavy candle jar will slide out during transit.

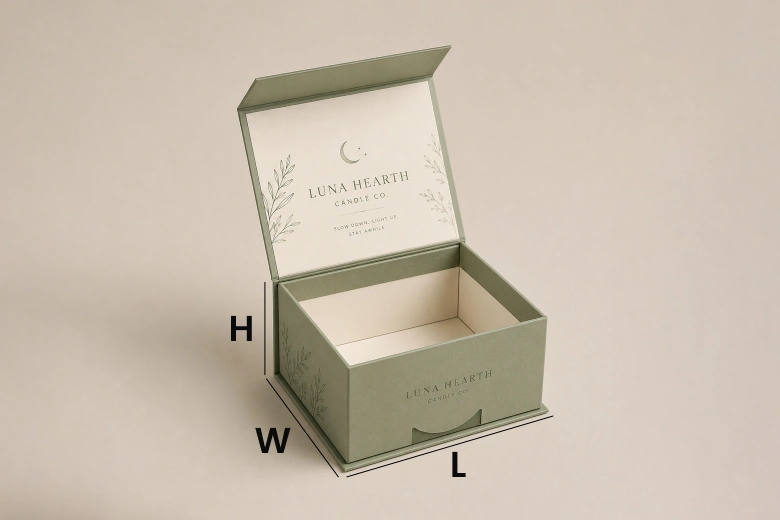

Magnetic Closure Boxes

As the name suggests, magnetic closure candle boxes are luxury boxes that snap shut with hidden magnets. They do not fold flat. Because they are completely rigid, always add a 0.25-inch clearance for a custom foam insert to fill any internal voids and keep the jar secure.

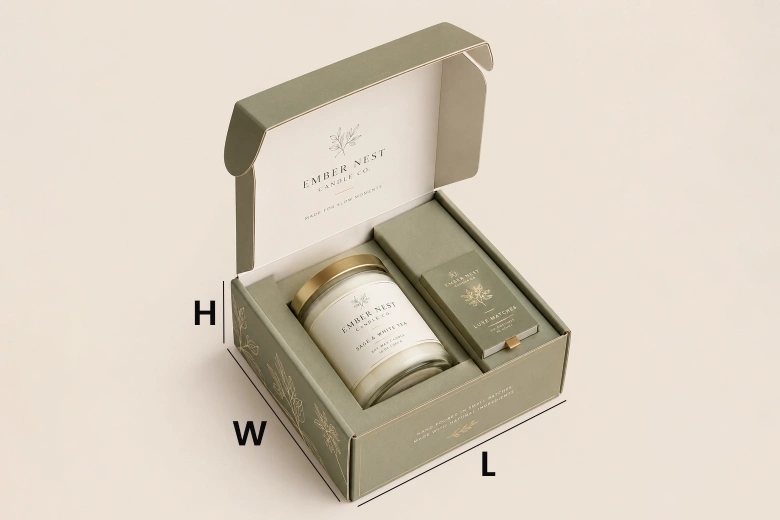

Mailer Candle Boxes

Mailer boxes feature protective double-thickness walls and a front tuck lid. They function as both the product box and the shipping box. Make sure you calculate internal dimensions to leave room for protective bubble wraps around the glass.

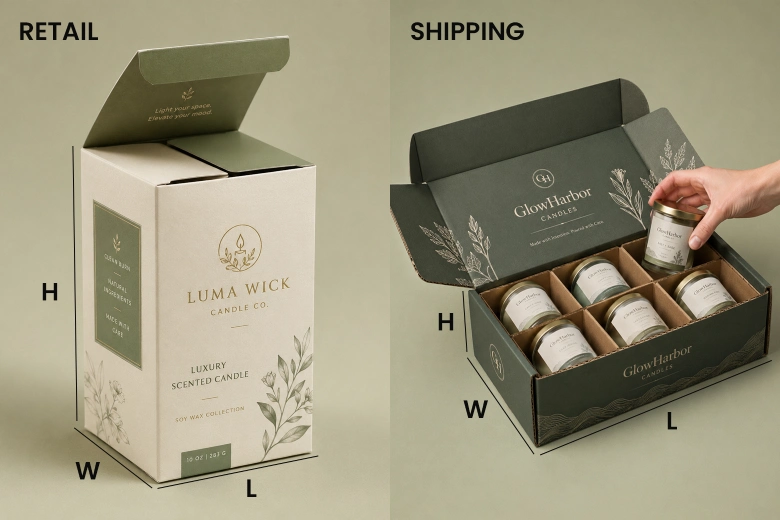

Sizing for Retail vs Shipping

The environment where your candle sits changes your packaging needs. And the right dimensions matter here, too. A box built for a boutique shelf requires different engineering than a box built for a delivery truck.

Retail Shelves

Retail candle packaging focuses on aesthetics and shelf space efficiency. Your box should fit snugly around the candle jar to be shelf-saving.

Make sure you use internal cardboard inserts to hold the jar perfectly centered. This prevents your candle from shifting and scratching the glass when customers pick it up. Thin, elegant cardstock works beautifully here.

E-Commerce Shipping

E-commerce packaging, such as mailers or candle subscription boxes, requires heavy-duty shock absorption.

The practices are quite different from those used for retail packaging:

• You should never ship a candle in its box alone; use the “box-within-a-box” method.
• Place your beautiful box inside a thick, corrugated candle shipping box.
• Ensure there is a 1-inch gap on all sides of the inner box. Fill that gap with bubble wrap or crinkled paper to survive drops.

Why Candle Box Dimensions Matter?

Investing time in exact measurements might feel tiresome. However, when it comes to designing a candle box, correct dimensions directly impact your business in many ways.

After all, candle packaging is not just a pretty wrapper. It is a powerful tool for cost control, damage prevention, and your brand marketing.

Here’s why candle box dimensions matter.

Product Protection and Stability

Glass jars shatter easily when dropped during transit. But no customer would want to get a broken candle. A perfectly sized box locks your candle into place. Most importantly, it eliminates internal movement, reducing the risk of cracked glass, spilled wax, and ruined wicks.

Lower Shipping Costs

Shipping carriers charge based on package size via “dimensional weight.” Oversized boxes mean you are paying to ship trapped air. Right-sizing your boxes can eventually minimize your package volume and instantly cut your shipping bills.

Elevated Brand Perception

Loose, sloppy packaging looks cheap and unprofessional. A snug, custom-fitting candle box signals luxury and high quality. It shows customers that you care about craftsmanship down to the final detail.

Better Unboxing Experience

The unboxing moment is a critical touchpoint for modern customers. A candle that slides smoothly out of a perfectly tailored box creates a satisfying sensory experience. This memorable unboxing experience drives positive social media shares and repeat buyers for your brand.

Final Words

No doubt, perfect candle packaging starts with a simple ruler, not a design program. Measure your jars with the lids on, add the necessary clearance, and choose a box style that matches your distribution strategy.

Take the time to match your box dimensions to your jar sizes. Done right, you will get a precisely measured box that protects your candle, reduces your shipping costs, elevates your brand perception, and delivers a better unboxing experience for your customers.

FAQs

How to measure a candle for the correct box dimensions?

Measure the candle’s length & width (the diameter of the thickest part of the base) and height, counted from the absolute bottom to the tip of the wick.

What are the standard candle box sizes?

Standard candle box sizes are generally categorized by candle type. The most common size is the 3.5 × 3.5 × 4.5-inch box, which perfectly fits standard 8-oz jar candles.

Do different candle box styles require different dimensions?

Yes, a candle box style changes how you calculate sizes. Different openings require different clearance levels.

Why candle box dimensions matter?

A precisely measured box protects your candle, reduces your shipping costs, elevates your brand perception, and delivers a better unboxing experience for your customers.
